Bunk Bed Assembly

We recommend using a Power Drill for the slats to hasten the process. If you have any questions write to us at care@ocodile. We're here to help.
You've got this!

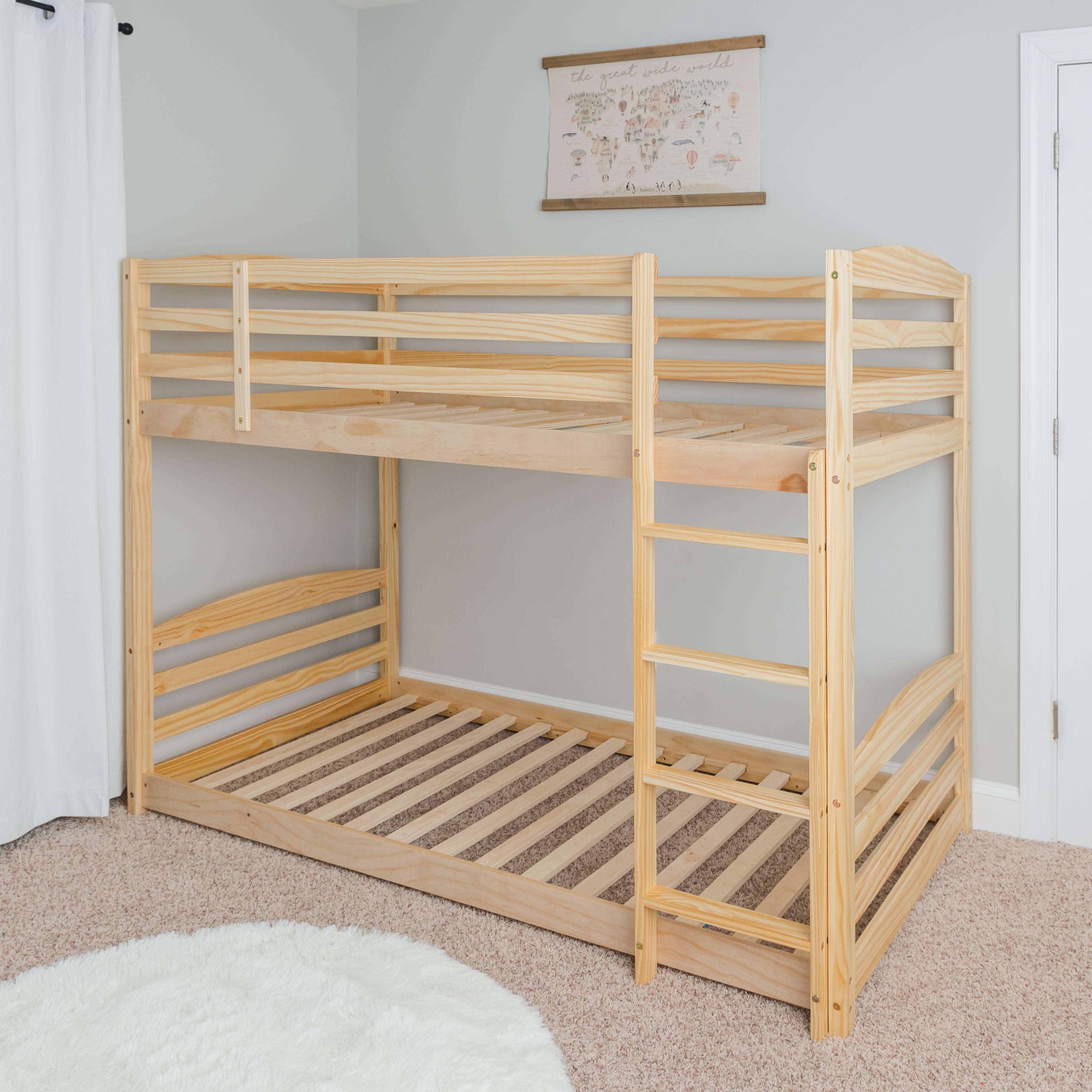

Instructional Video

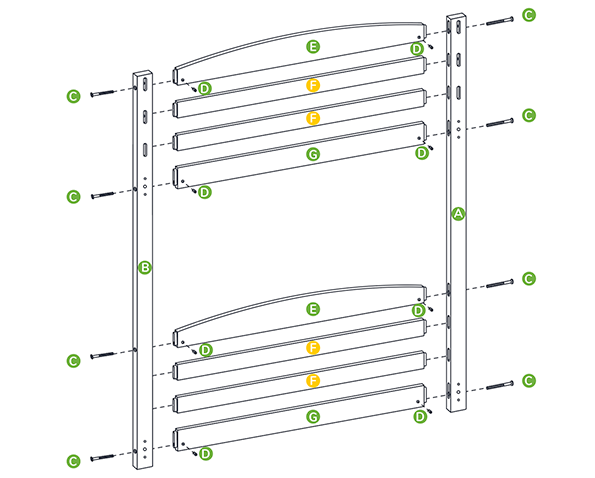

Step 1

Headboard & Footboard

Position Corner Post B on the left and Corner Post A on the right. The holes on E, F and G should be facing you.

Use 16 C bolts and 16 D barrel nuts.

Repeat the procedure twice. One will be used as the headboard and one as a footboard.

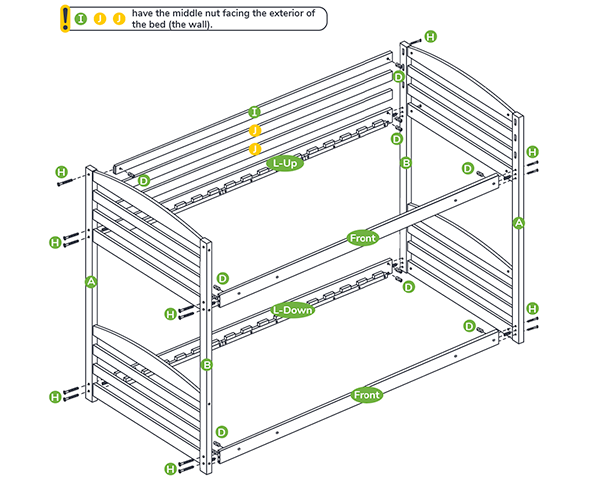

Step 2

Adding The Long Rails

To connect L-Up, L-Down and Front rails to a corner post you need
to use two H bolts with the corresponding D barrel-nuts and one WD
wooden dowel for mounting each rail to a corner post.

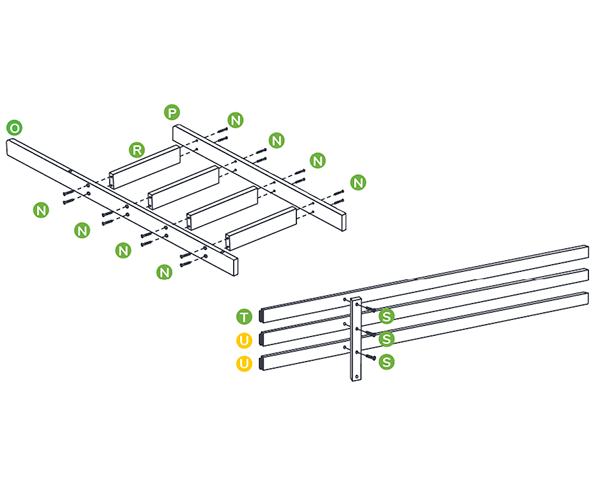

Step 3 - Ladder on the right

Ladder and Rails Assembly

Use 16 N bolt for ladder assembly.

Use 3 S bolts to attach Part K to parts T, U, U

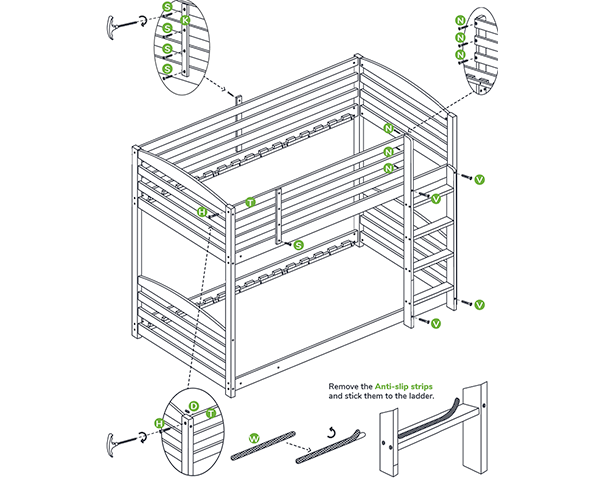

Step 4 - Ladder on the Right

Attaching Parts to Bed

Use 4 V bolts to attach the ladder to the Front Rails.

Use 3 N bolts to attach rails T, U, U to the ladder.

Use an H bolt and a D barrel nut to connect the T rail to the B corner post.

Use an S bolt to connect K to the Upper Front Rail

Use 3 S bolts to connect K to the I and J Rails.

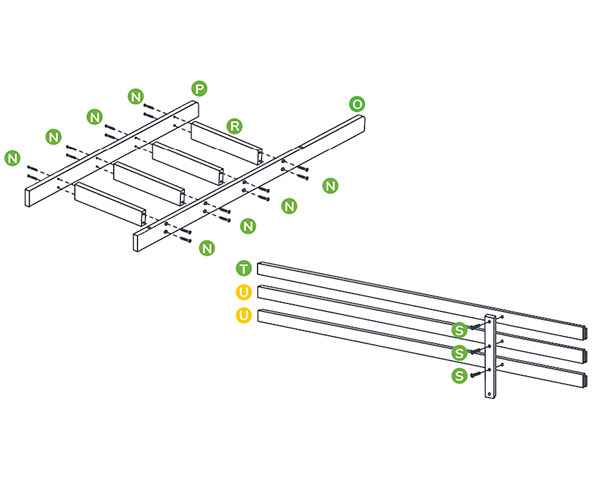

STEP 3 - Ladder on the Left

Ladder and Rails Assembly

Use 16 N bolt for ladder assembly.

Use 3 S bolts to attach Part K to parts T, U, U

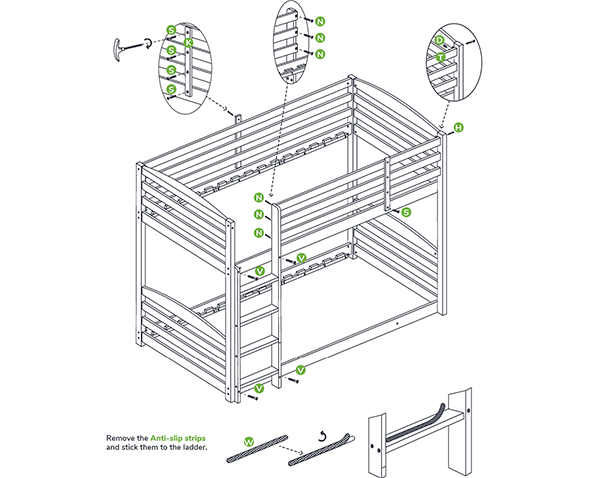

Step 4 - Ladder on the Right

Attaching Parts to Bed

Use 4 V bolts to attach the ladder to the Front Rails.

Use 3 N bolts to attach rails T, U, U to the ladder.

Use an H bolt and a D barrel nut to connect the T rail to the B corner post.

Use an S bolt to connect K to the Upper Front Rail

Use 3 S bolts to connect K to the I and J Rails.

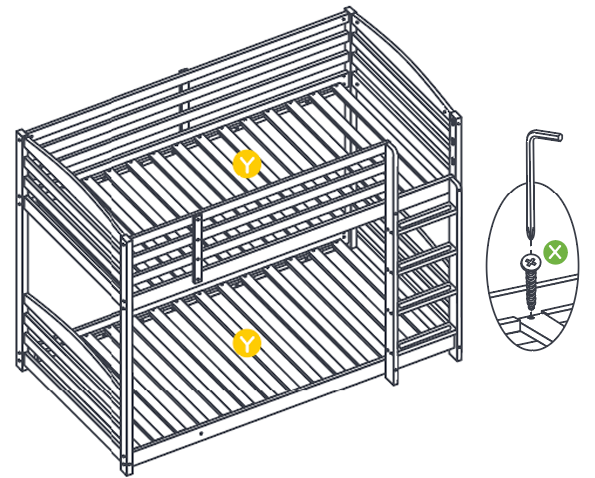

Step 5

Adding the Slats

We recommend using a Power Drill for this step.

Use two screws (Part X) for each slat (Part Y).
