Full Size Floor Bed - Instructions

Our previous version of the Full Size Floor Bed featured 14 slats. Based on customer feedback and further testing, we updated the design to 7 slats with an added Center Support Beam for additional support and stability.

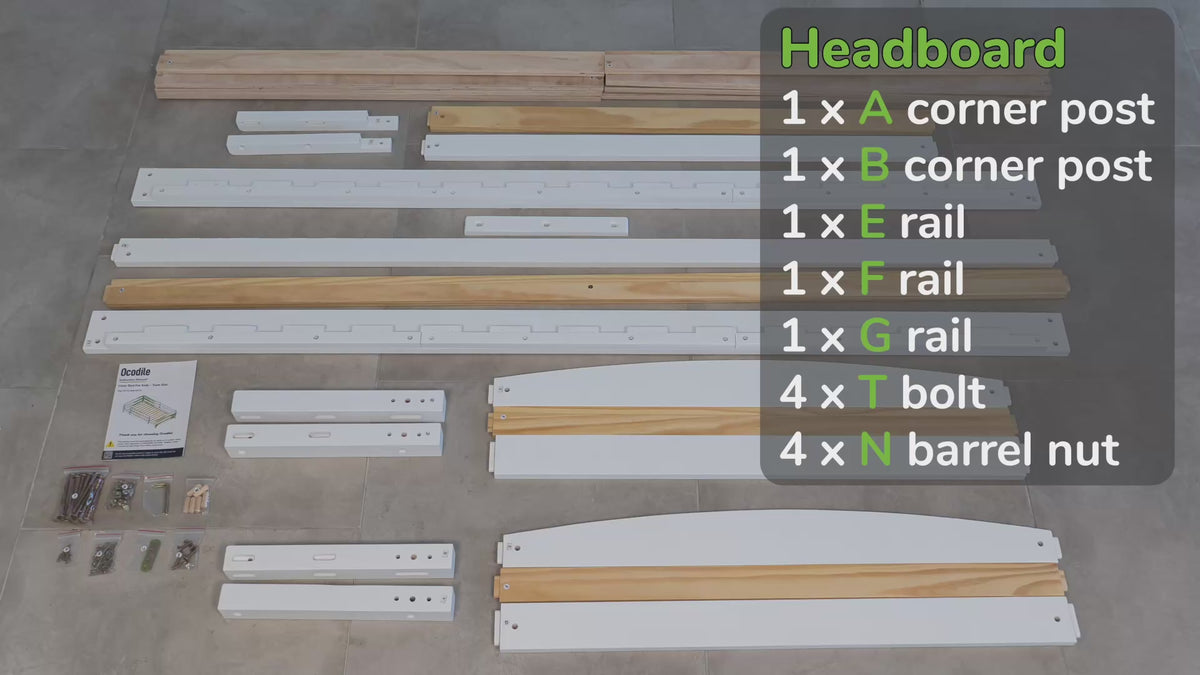

To mount the bed follow the twin size bed instructions video and then follow the instructions below the video.

Attention! Predrilled holes on G must face the inside of the bed frame.

Step by Step Instructions

Full Size Bed - Last Steps

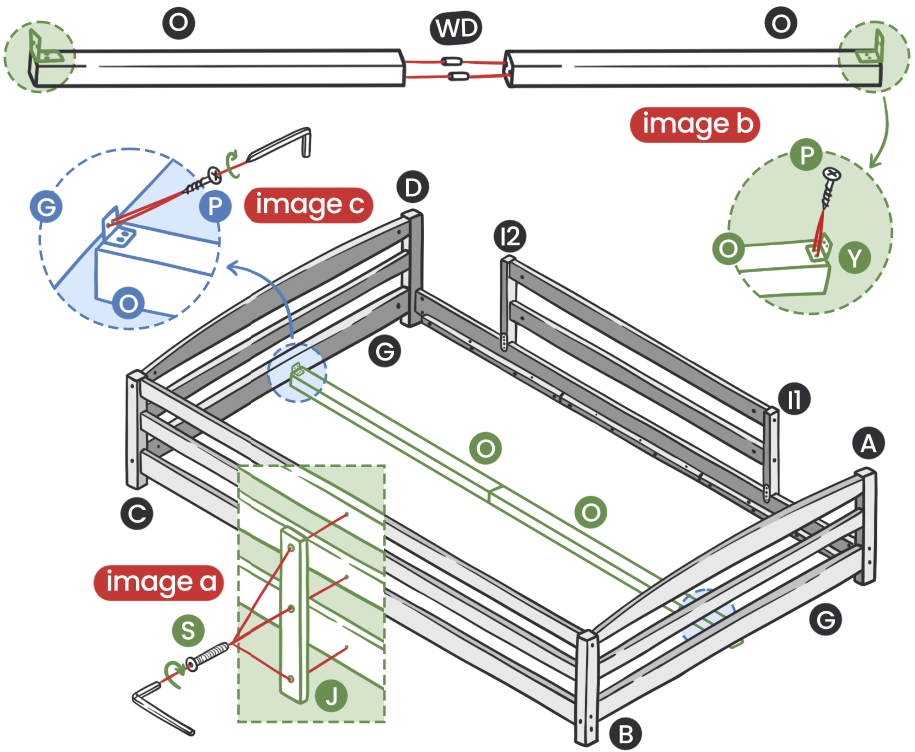

Adding the Support Beam

Adding the Support Beam

a. Use 3 S short bolts to attach part J to the outside of L1, K1, and K2.

b. Join the two O parts using the WD wooden dowels to form the Center Support Beam. Attach one Y connector plate to each end using 2 P screws per plate.

c. Position the Center Support Beam between the G rails. Secure each Y connector plate to the corresponding G rail using 2 P screws per plate.

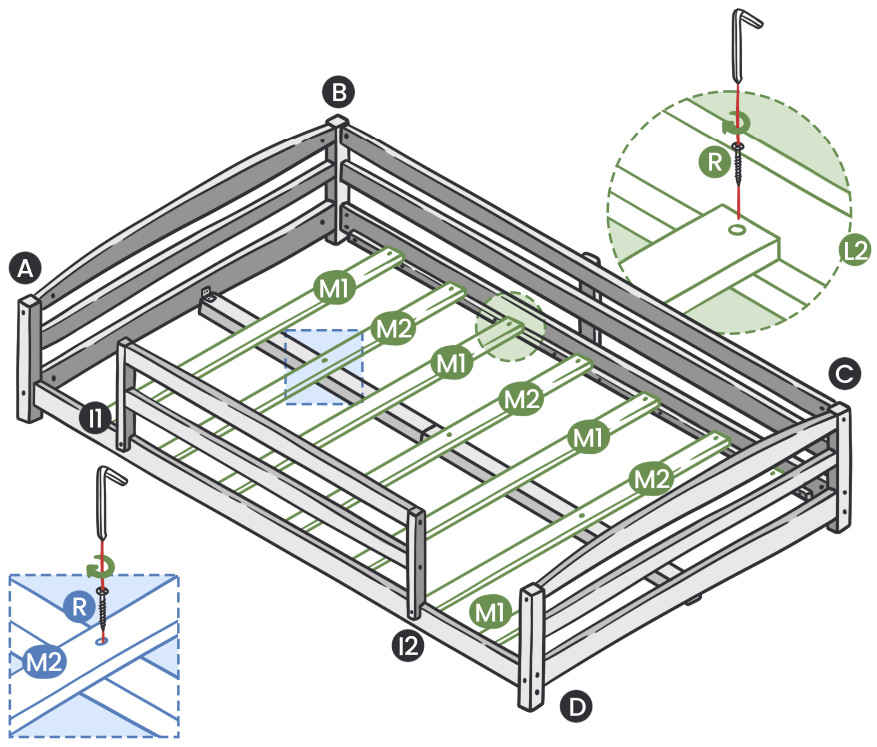

Mounting the Slats

Mounting the Slats

  • Place the slats on the rails attached to L1 and L2. Alternate between M1 and M2, starting and ending with an M1 slat.

  • Align each slat with the pre-drilled holes on L1 and L2 to ensure correct spacing.

  • Secure each slat to L1 and L2 using R screws.

  • Secure each M2 slat to the Center Support Beam (O) using one additional R screw through the center hole.
